Friction Stir Welding (FSW) has emerged as a breakthrough in the field of welding, offering several advantages over traditional fusion welding methods. This solid-state welding technique uses a rotating tool to join metals without reaching their melting point, resulting in superior weld quality. In this article, we will explore the basic principles, features, advantages, disadvantages, and industrial applications of FSW, highlighting its growing importance in various manufacturing sectors.

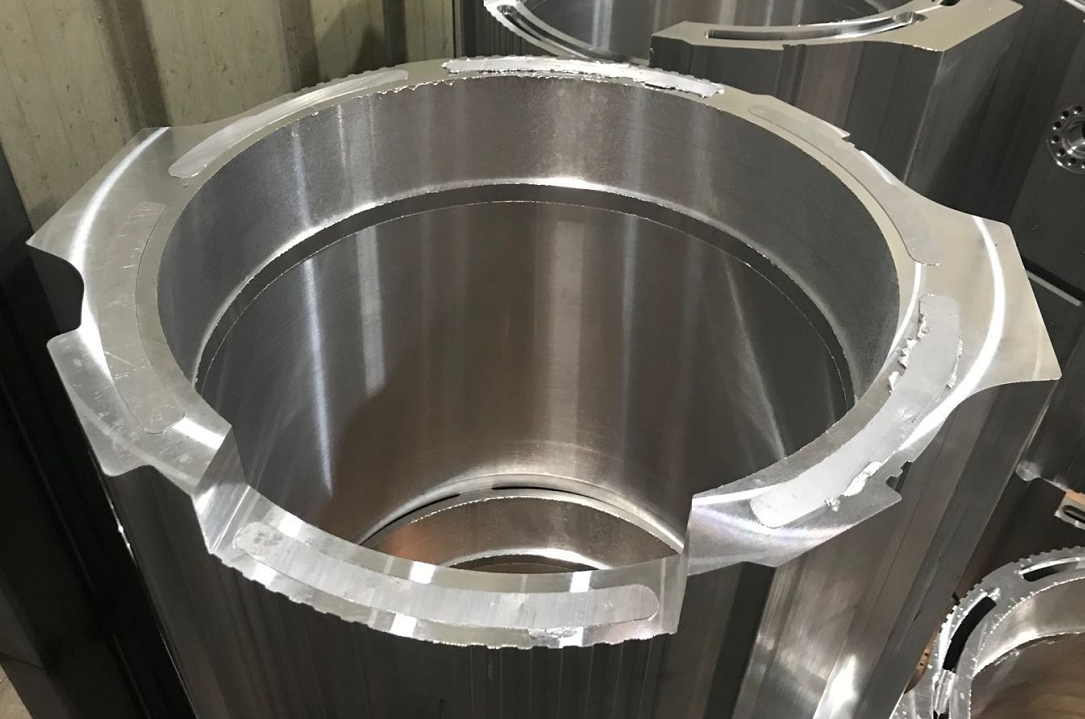

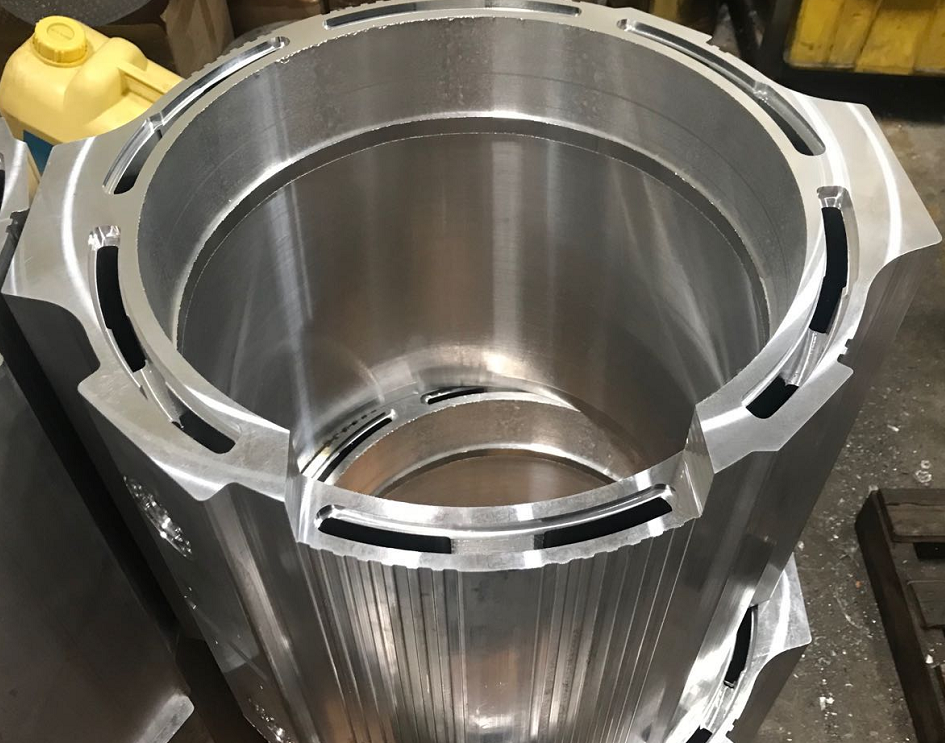

Understanding the Basic Principle of Friction Stir Welding

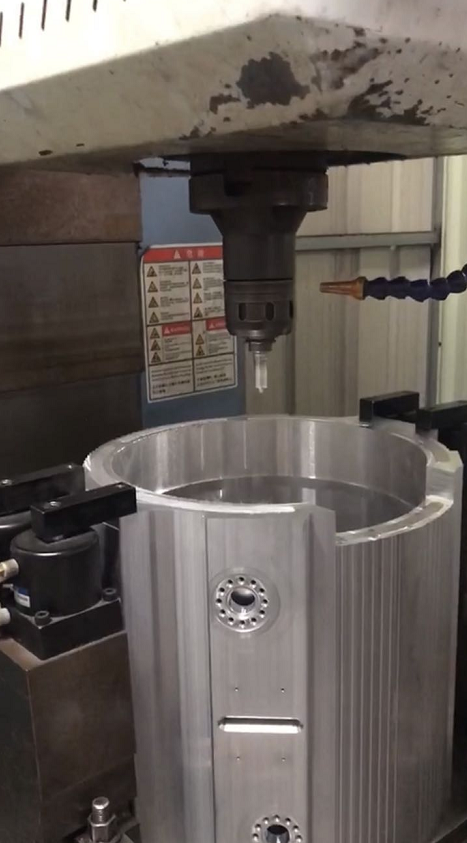

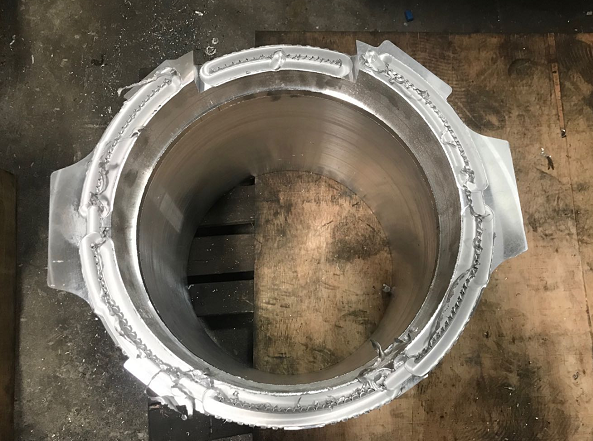

Friction Stir Welding is a solid-state joining process that employs a specially designed rotating tool (also known as the stirrer) to generate frictional heat. The rotating tool generates intense heat as it makes contact with the workpieces. This heat softens the material, bringing it to a near-molten, yet solid state, and causes the metal to flow plastically, forming a strong joint as the tool moves along the welding path. The pressure applied by the tool further consolidates the joint, allowing the workpieces to be welded seamlessly.
FSW is particularly useful for joining materials that are difficult to weld using conventional fusion techniques, such as aluminum alloys, copper alloys, and magnesium alloys. It has also overcome the limitations of traditional welding processes by enabling the welding of parts with complex geometries, including butt joints, lap joints, and corner joints. The process eliminates common welding defects such as porosity, cracking, and alloy element burn-off, resulting in a joint with mechanical properties that often exceed those of the base material.
Key Features of Friction Stir Welding
Excellent Weld Quality
Friction Stir Welding creates joints that are highly reliable and free from typical fusion welding defects, such as cracks, porosity, and inclusions. Since FSW is a solid-state welding process, it avoids the metallurgical problems associated with the solidification phase of traditional welding, such as embrittlement or loss of alloying elements. This results in a weld that closely resembles the properties of the base material, offering superior mechanical performance.
Versatility in Welding Materials
FSW is ideal for welding a wide range of non-ferrous metals, including aluminum, copper, titanium, magnesium, and zinc alloys. It is also capable of welding dissimilar materials, which is particularly advantageous in industries where materials with different properties need to be joined. Additionally, FSW can be applied to ferrous metals such as steel, offering great versatility in material compatibility.
No Need for Filler Materials or Protective Gases
One of the major advantages of FSW is that it does not require filler materials, shielding gases, or pre-treatment of surfaces before welding. This reduces the complexity and cost of the process, making it more efficient compared to traditional fusion welding. Since there is no need for welding rods or gas, the process also eliminates the risk of contamination from external materials.
High Precision and Minimal Deformation
Because FSW is a solid-phase process, it introduces minimal heat into the workpieces, which results in less thermal distortion and reduced residual stresses after welding. This allows for precise welding with tight dimensional tolerances. Additionally, the high energy density and rapid heat input of FSW ensure that welding deformation is minimal, making it ideal for applications that require high precision.
Environmentally Friendly
Friction Stir Welding is often referred to as a "green welding method" due to its environmental benefits. Unlike traditional welding processes that produce harmful arc radiation, smoke, and splatter, FSW operates with low noise and zero emissions. This makes it a sustainable option, especially in industries focused on reducing their environmental impact.
Advantages of Friction Stir Welding
Improved Weld Quality: FSW produces joints that are free from common defects like cracks, inclusions, and voids, ensuring higher reliability and performance.
Wide Material Compatibility: FSW can be used on various materials, including aluminum, magnesium, copper, steel, and titanium, making it suitable for numerous applications across different industries.
Reduced Heat-Affected Zone (HAZ): The process generates less heat compared to fusion welding, reducing the risk of distortion and preserving material properties around the joint.
Cost-Effective: FSW eliminates the need for filler materials, shielding gases, and expensive surface treatments, leading to lower operational costs.
Environmentally Friendly: The process generates minimal waste, no toxic fumes, and has a lower energy consumption compared to other welding techniques.
Disadvantages of Friction Stir Welding
While FSW offers numerous benefits, it does have some limitations:
High Mechanical Forces: The process requires significant mechanical force to rotate the tool and move it along the workpiece, which demands a high level of rigidity in the welding equipment.
Limited Flexibility: FSW is less flexible than traditional arc welding, as it requires the workpieces to be precisely aligned and fixed during the process.
Tool Wear: The tool used in FSW experiences significant wear, especially when working with hard materials, leading to the need for regular tool maintenance or replacement.
Keyhole Formation: At the end of the weld, a small "keyhole" may form, which can impact the final appearance of the joint.
Applications of Friction Stir Welding
FSW has found widespread use in several industries, particularly where high-quality, durable welds are required. Here are some of the key industrial applications of Friction Stir Welding:
Aerospace Industry
FSW is extensively used in aircraft manufacturing to join aluminum alloys, magnesium alloys, and other lightweight materials. Its ability to produce high-strength, reliable joints makes it ideal for critical applications such as aircraft frames, wings, and fuselage components.
Automotive Industry
In the automotive sector, FSW is used for joining lightweight materials in car body frames, engine components, and chassis parts. The method is especially beneficial in electric vehicle manufacturing, where lightweight yet durable structures are essential.
Train and Railcar Manufacturing
The railway industry benefits from FSW in manufacturing high-speed trains, subway cars, and trams. It is particularly useful in welding large, heavy-duty aluminum components found in train carriages and containers.
Shipbuilding
In shipbuilding, FSW is used to weld aluminum and other non-ferrous metals for ship hulls, decks, and other structures, offering robust joints that can withstand harsh marine environments.
Electronics Industry
FSW is also applied in the electronics industry to join materials used in electrical connectors, engine housings, and electrical packaging. Its precision and quality make it ideal for manufacturing complex electronic components.
Other Industrial Applications
Beyond these major sectors, FSW is used in various other applications, including the manufacturing of kitchen appliances, refrigerators, LPG storage tanks, and aluminum bridges. The process is also utilized in the production of heat exchangers and decorative panels.
