The global automotive casting market exceeded $37 billion in 2022. This is a big deal as it means that manufacturers just need lighter and more efficient vehicle components. Automotive manufacturers' move toward electric vehicles and complex designs creates unprecedented challenges. These new designs just need tighter tolerances and superior quality.
Modern automotive die casting must meet rigorous OEM car parts specifications while providing affordable solutions. Manufacturers must optimize their casting operations with a systematic approach. The process spans from material selection and process control to quality management and advanced monitoring systems. This piece gets into proven strategies and technologies. These help casting facilities meet tough requirements while reducing costs and improving output quality.
This piece covers everything in automotive casting operations. Quality standards, process parameters, monitoring technologies, and cost-reduction strategies take center stage. You'll discover the quickest way to improve casting processes and meet industry's evolving needs.
The automotive industry's casting requirements have changed substantially as manufacturers expand precision components and complex designs. Car makers must meet strict quality standards and create affordable solutions that maintain production efficiency.
IATF 16949 certification forms the standard for quality management systems in automotive OEM quality standards. Components go through extensive testing. This includes early life failure rate (ELFR) tests at 125°C and power temperature cycling between 125°C and -40°C. Quality checks happen at multiple stages:
Wafer-level and assembly inspections
Final testing and reliability verification
Advanced Product Quality Planning (APQP) documentation
Production Part Approval Process (PPAP)
Automotive casting materials need careful evaluation of multiple factors. Aluminum alloys remain popular because they balance strength and weight well. These alloys can reduce weight by up to 50% compared to traditional materials. Material properties you need to think about include:
Thermal conductivity and heat resistance
Corrosion resistance and durability
Dimensional stability under stress
Affordable options and availability
The A380 aluminum alloy has become the top choice for many applications that need superior strength, ductility, and corrosion resistance.
Complex automotive castings work best with a comprehensive approach that meets performance and manufacturing needs. Engineers combine functional requirements with manufacturing limits to design cast components. The American Foundry Society shows that high-quality castings can make automotive parts last 30% longer.
Designers must ensure precise dimensional control, especially in larger castings where heat treatment and quenching can distort dimensions. Modern casting designs now include features such as:
Optimized rib patterns to boost strength
Central gating systems that improve metal flow
Integrated structural elements to reduce weight
Precise wall thickness control for even solidification

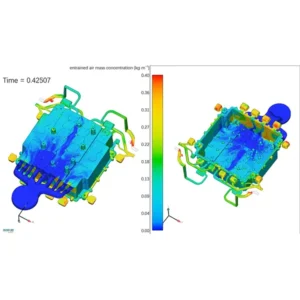

Complex automotive castings succeed largely because of advanced computer-aided design (CAD) software that creates precise molds for even metal flow and uniform cooling.

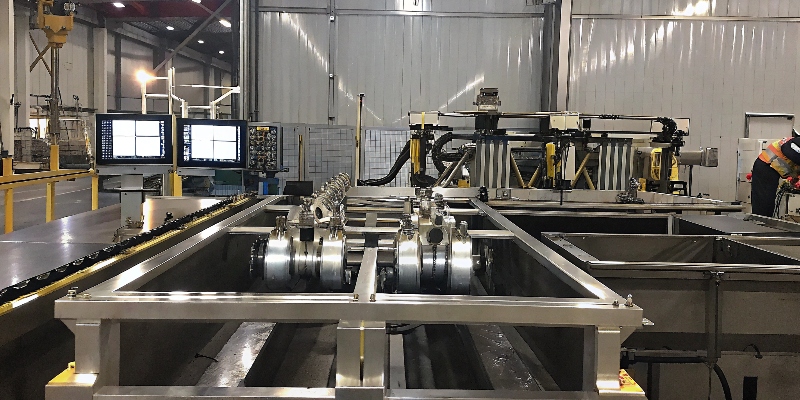

Automotive die casting success depends on controlling multiple process parameters to ensure quality and efficiency. High-pressure die casting (HPDC) has become the preferred method. Manufacturers can now produce complex automotive components and reduce production complexity by up to 70-100 parts per single casting.
Temperature management plays a vital role at each stage of the die casting process. Aluminum die casting works best at temperatures between 630°C to 720°C. The main control parameters include:
Mold temperature (150-300°C optimal range)
Holding furnace temperature stability
Cooling rate consistency
Thermal gradient management
HPDC pressure control typically works between 400-900 kg/cm². Higher pressures can make molds expand more and create aluminum channeling. Careful pressure control helps tools last longer.
Better cycle times make production more efficient without sacrificing quality. Modern die casting machines with electric toggle mechanisms have shown up to 20% faster cycle times. Manufacturers need to balance these factors:
Metal flow rates and injection speed
Solidification time optimization
Ejection timing precision
Automated handling systems integration

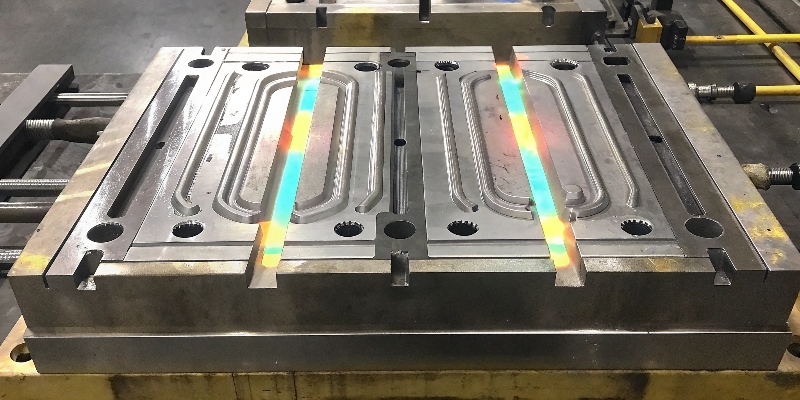

Tool design and maintenance affect casting quality and operational efficiency by a lot. Regular preventive maintenance helps spot problems before they hurt quality control or stop production. The best maintenance practices include:
Scheduled service with minimal downtime
In-house welding and stress relieving
Preventive repairs and modifications
Strategic positioning of cooling channels
Modern die casting facilities use immediate monitoring systems to track tool performance and predict maintenance needs. This proactive approach helps deliver consistent quality. Tools last longer because problems get caught early.
Advanced process monitoring technologies help manufacturers control these parameters precisely. The result is better quality automotive castings that are more consistent with fewer defects.
Quality management systems are the foundations of successful automotive casting operations. IATF 16949:2016 serves as the main standard for automotive quality management. This complete framework helps organizations reduce variation and waste to ensure consistent product quality.
Automotive casting facilities use strict quality control measures throughout production. The AIAG CQI-27 Special Process assessment offers standardized guidelines to evaluate casting processes. Quality control includes these essential elements:
Process control measurements
Equipment maintenance protocols
Operator training documentation
Regular performance evaluations
Statistical process monitoring
Organizations need a systematic approach to manage quality and prevent defects. Companies using IATF 16949 show a 25% improvement in finding and addressing operational risks. Advanced imaging and AI algorithms detect microscopic defects in castings to ensure only the highest quality components move to production.
Manufacturers use Non-Destructive Testing (NDT) techniques like ultrasonic testing and magnetic particle inspection to detect potential issues without compromising part integrity. These methods combined with statistical process control maintain consistent quality and minimize waste.
Automotive casting has made traceability shift from best practice to regulatory requirement. A resilient documentation system lets manufacturers:
Track components throughout the supply chain
Identify quality issues early
Streamline recall management when needed
Ensure compliance with global safety standards
IATF 16949 standard requires complete documentation of test plans, cases, and results. Bi-directional traceability requirements ensure tracking of each component from raw material to final assembly. This systematic approach helps manufacturers keep quality records and support continuous improvement processes.
Quality management systems integration supports resource optimization and reduces costs. Organizations that use complete quality management systems report major improvements in manufacturing efficiency. Some achieve up to 30% reduction in defect rates. These improvements lead to improved customer satisfaction and fewer warranty claims.

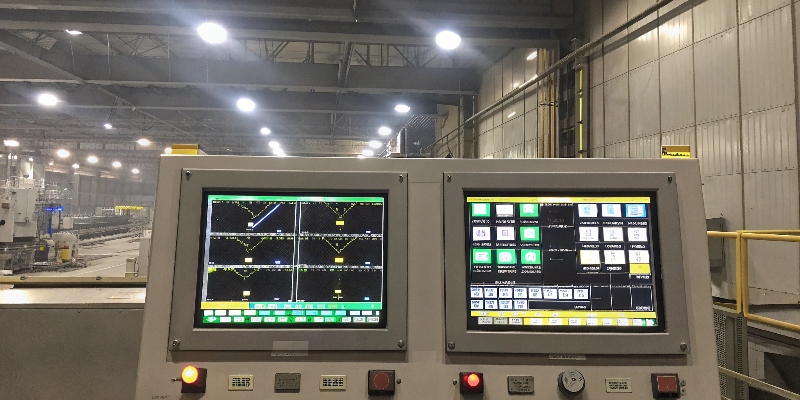

Advanced monitoring technologies have reshaped automotive casting operations through sophisticated data collection and analysis systems. Modern die casting facilities now use integrated sensor networks. These networks track multiple production parameters continuously and make live adjustments to improve quality.
Die casting operations now use detailed monitoring platforms that track a wide range of production parameters. These systems blend with machine brands like BUHLER, DCP, HPM, TOSHIBA, and FRECH to provide unified control and monitoring capabilities. Key monitoring parameters include:
Production rates and cycle times
Machine status and operational efficiency
Scrap rates and quality metrics
Temperature and pressure variations
Tool performance indicators
Cloud-based platforms support these monitoring systems and process large volumes of data while giving remote access to critical production information. This digital shift has improved inspection processes and reduced human-related errors substantially.
Modern predictive maintenance systems use artificial intelligence and machine learning algorithms to spot equipment problems before they cause failures. These systems bring several key benefits:
Early detection reduces unplanned downtime
Actual usage helps optimize maintenance schedules
Proactive care extends equipment lifespan
Preventive action lowers repair costs
Die casters can now produce complex castings reliably while minimizing waste with predictive maintenance tools. These systems detect various issues like porosity, blistering, cracks, and leaks, which allows timely interventions.
Quality analytics platforms give detailed production insights through automated data collection and analysis. These systems offer live visualization of key performance indicators (KPIs) and create detailed reports to optimize processes. IIoT technology helps manufacturers monitor their suppliers' operations with customized dashboard systems that show complete production line visibility.
Advanced analytics systems can process data from multiple sources, including:
Machine performance metrics
Quality control measurements
Environmental conditions
Production efficiency indicators
These systems trigger automated alerts for abnormal behaviors and maintain traceability throughout the component lifecycle. Manufacturing facilities that use these monitoring technologies report major improvements in efficiency and substantial reductions in defective parts per million (DPM) rates.
Automotive casting operations need a balanced approach between quality and efficiency to optimize costs. Metal casting foundries spend 5-7% of their operating costs on energy. This makes cost management vital to stay competitive.
Materials make up much of automotive manufacturing costs. They account for nearly half of the total manufacturing cost of a vehicle. Companies use several strategies to optimize their material usage:
Strategic supplier selection and negotiation
Value stream mapping
Material consolidation in designs
Advanced alloy utilization
Inventory optimization systems
The automotive industry has shown that proper material optimization can reduce component weight by 10-60% by using high-strength materials and advanced alloys.
Energy management programs work well. They cut energy costs by 3-10% annually and reduce waste and emissions. Here are the main ways to improve energy efficiency:
Furnace operation optimization
Energy-efficient motors
Better compressed air systems
More efficient lighting
Heat recovery systems
Natural gas meets about 50% of energy requirements in die casting. This makes energy efficiency especially important when gas prices change. Simply using adjustable-speed drives and energy-efficient motors can reduce electricity use by 1.2%.
Lean manufacturing principles are vital to reduce waste in automotive casting. BMW's Leipzig plant uses automated systems that collect and sort metallic waste. This has led to meaningful cost savings through recycling. Volkswagen uses a closed-loop recycling system that saves 95% energy compared to making new aluminum.
Just-In-Time (JIT) inventory management helps reduce waste and carrying costs. It keeps inventory costs low while ensuring materials are available when needed. Plants that use detailed waste reduction strategies have seen these results:
Defect rates dropped by up to 30%
Lead times improved through better processes
Less material waste through advanced monitoring
Better production through value stream mapping
Modern automotive casting facilities use smart inventory systems to track stock levels live. This helps them make better decisions about ordering and using materials. Their systematic approach to cutting waste improves cost efficiency and environmental impact.
Technology and market needs keep pushing automotive casting processes forward. Plants that use complete optimization strategies have seen remarkable improvements. Their defect rates dropped 30% while component weights decreased 50% through better material usage.
Modern automotive casting operations thrive on these key elements:
Strict compliance with IATF 16949 quality standards
Exact control of process parameters
Advanced monitoring technology integration
Smart cost optimization methods
Complete quality management systems
Plants that embrace these optimization strategies gain an edge in the competitive automotive market. Advanced monitoring systems, predictive maintenance, and live quality analytics have become essential requirements. These capabilities combined with smart material and energy management help manufacturers meet tough OEM requirements while they optimize operations.
Vehicle designs grow more complex and quality standards become stricter. Manufacturers who focus on making their processes better through systematic optimization and analytical insights are ready to tackle future challenges. They can deliver premium quality components to their OEM partners consistently.
